For flow rates of up to 132000 m³/h and a static pressure of up to 7000 Pa, also available as an ATEX version
The product selection supports you in choosing the optimum fan for your application. For a detailed configuration, our online configurator ColaVent® is available.
Instructions:
Fan selection by product group filter.
Shows in the diagram only the selected group.
The red crosshair, shows you the choosen workingpoint.
If ATEX necessary switch to "Yes".
Select your favourite product, depending on the crosshair position, by clicking on the product label on top of the diagramcurve. The selected fan will pop up.
Detail design tool: ColaVent
Red point outside diagramcurves, please contact Colasit.
| Volume flow | 340 – 5600 m3/h |
|---|---|
| Static pressure | 50 – 1700 Pa |
| Explosion Protection |  |
| Efficiency (tot. mech.) | 42 % |
| Volume flow | 340 – 5600 m3/h |
|---|---|
| Static pressure | 50 – 1700 Pa |
| Explosion Protection | |
| Efficiency (tot. mech.) | 42 % |
| Volume flow | 550 – 19300 m3/h |
|---|---|
| Static pressure | 50 – 600 Pa |
| Explosion Protection | No |
| Efficiency (tot. mech.) | 44 % |
| Volume flow | 150 – 13500 m3/h |
|---|---|
| Static pressure | 50 – 2800 Pa |
| Explosion Protection | |
| Efficiency (tot. mech.) | 83 % |
| Volume flow | 150 – 13500 m3/h |
|---|---|
| Static pressure | 50 – 3000 Pa |
| Explosion Protection | |
| Efficiency (tot. mech.) | 79 % |
| Volume flow | 2900 – 127000 m3/h |
|---|---|
| Static pressure | 200 – 1900 Pa |
| Explosion Protection | |
| Efficiency (tot. mech.) | 68 % |
| Volume flow | 2900 – 132000 m3/h |
|---|---|
| Static pressure | 200 – 4000 Pa |
| Explosion Protection | |
| Efficiency (tot. mech.) | 70 % |
| Volume flow | 1500 – 132000 m3/h |
|---|---|
| Static pressure | 400 – 5300 Pa |
| Explosion Protection | |
| Efficiency (tot. mech.) | 74 % |
| Volume flow | 60 – 5300 m3/h |
|---|---|
| Static pressure | 450 – 7000 Pa |
| Explosion Protection | |
| Efficiency (tot. mech.) | 82 % |
| Volume flow | 50 – 400 m3/h |
|---|---|
| Static pressure | 50 – 900 Pa |
| Explosion Protection | |
| Efficiency (tot. mech.) | 44 % |
| Volume flow | 50 – 350 m3/h |
|---|---|
| Static pressure | 35 – 450 Pa |
| Explosion Protection | No |
| Efficiency (tot. mech.) | 42 % |

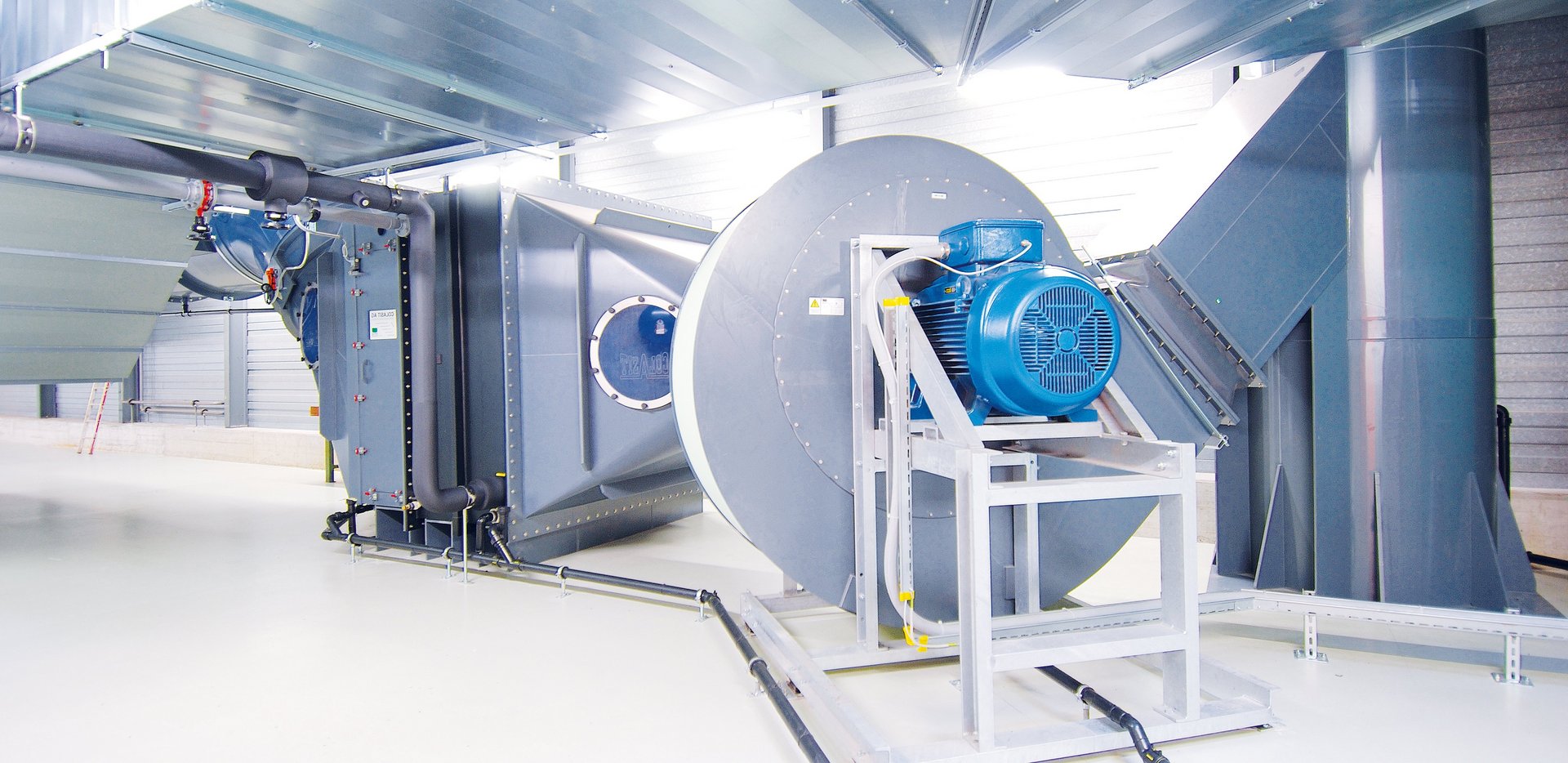

Colasit is a leader when it comes to the product range, service life and energy efficiency for industrial fans made of plastic.
Individual configuration for your application.
