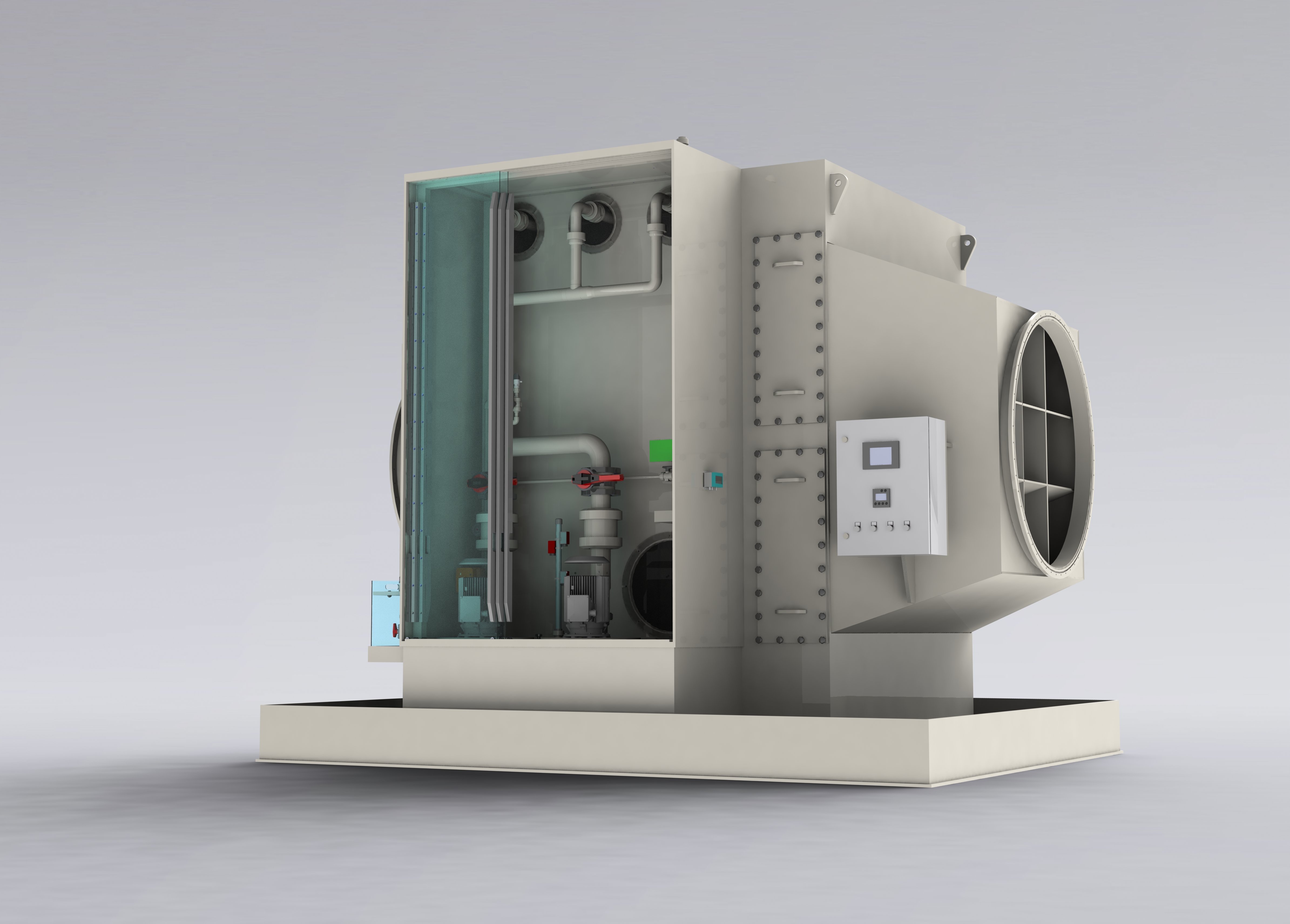

The Colasit CRHE cross-flow exhaust air scrubber with a horizontal design cleans contamination from highly-contaminated process air up to a volume of 70000 m³/h. Special versions with higher air performance are available on request.

Into the horizontally flowing exhaust air, a washing liquid is injected in a cycle, which washes out the water-soluble contaminants by adding alkalis or acids. A collection tank collects the pollutants.

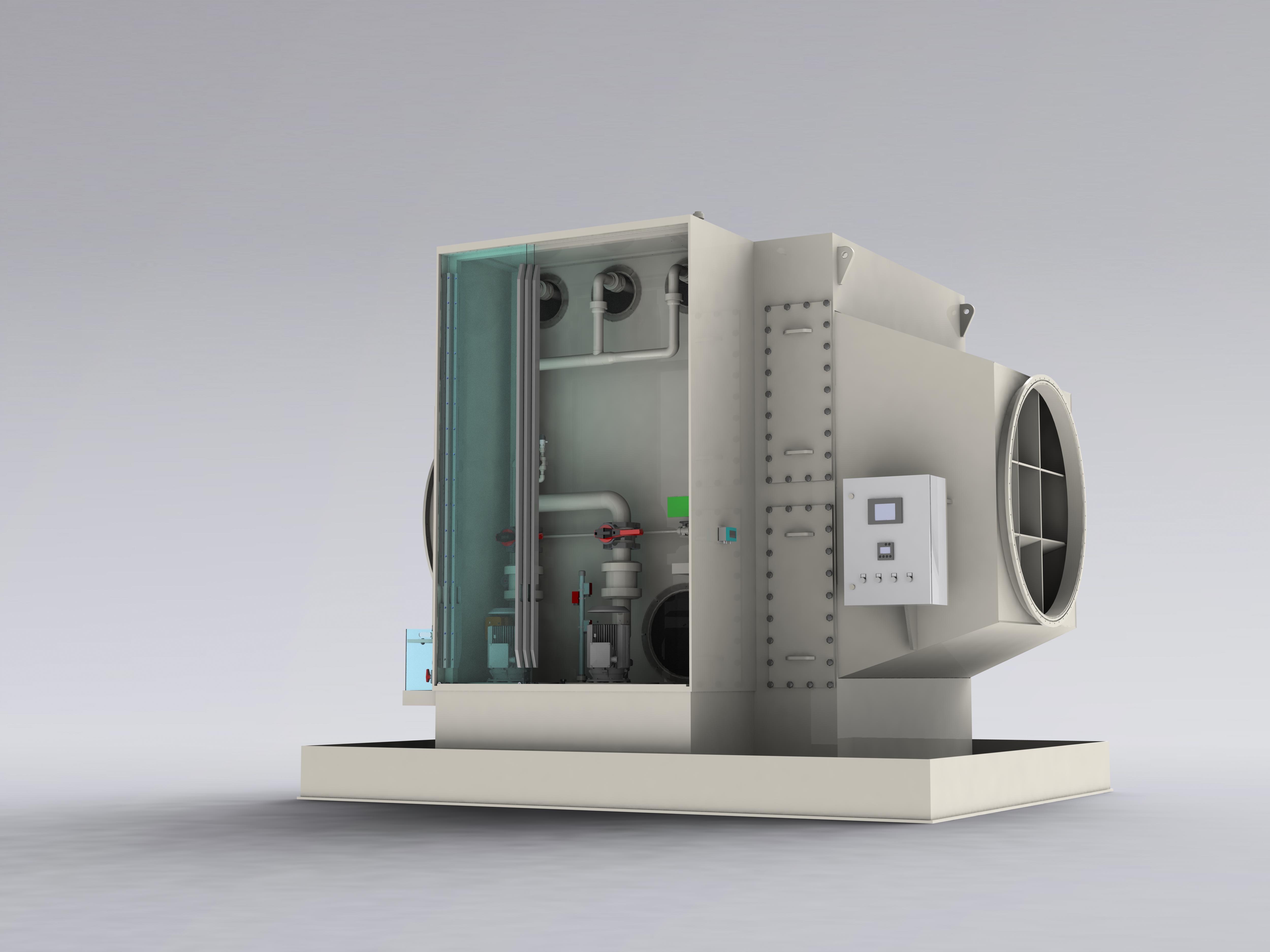

CRHE cross-flow exhaust air and gas scrubbers made of plastic to separate environmentally harmful substances - Colasit

Specifications

Utilization

Cleaning highly-contaminated process air with acidic or alkaline contamination in:

  • The food industry
  • The pharmaceutical, chemical or biochemical industry
  • Semiconductor, solar and surface technology
  • Wastewater treatment plants and waste recycling facilities
  • Composting
  • Drying processes

Characteristics

Volume flow:
min. 1500 m3/h to max. 70000 m3/h
Efficiency:
up to max. 99 %

Construction

Made of non-corrosive plastics: PP, PPs, PE, PVC, PVDF, GRP. Packaging materials ensure sufficient boundary surface area between the gas and fluid phase. A mist eliminator is used to separate liquid drops that have been carried along.

Ex Protection

EX Logo

Version available in ATEX zones 1 + 2

Accessory

  • pH measurement, conductometry measurement
  • Chemical dosing, dosing tank
  • Automatic sludge removal from the washing fluid
  • Design for outdoor installation, screw-in heater
  • Inclined bottom
  • Redundant scrubber pump
  • Aerosol separator
  • Alternative packaging material
  • Splash guard
  • Process control
  • Containment basin

Design

Individual design according to your specifications.
